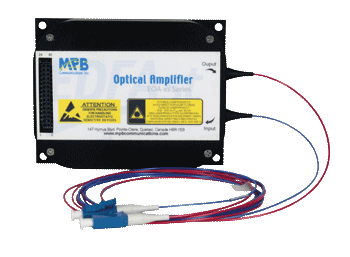

EOA-xs Boosters

n

nEOA-xs Booster provides up to 23 dBm of output power in a compact (MSA) footprint and can be customized for single channel or multi-channel narrow band or wideband power amplification.

nn

Standard models available at 15 dBm, 17 dBm, 20 dBm, and 22 dBm output powers.

nn

Specifications

n

??/p>nn

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n EOS-xs n	n Boosters n	n ??/p>n
Maximum Saturated Output Power at -5 dBm Input Power	22	dBm
Minimum Operational Bandwidth	1529-1563	nm
Noise Figure at 1550 nm, -5 dBm Input Power	<5.0 (4.3 typ)	dB
Polarization Dependent Gain	≤ 0.3	dB
Polarization Mode Dispersion	≤ 0.5	ps
Input & Output Isolators	Standard
Power Consumption, with 3.3 V Power Supply	< 4.9	W
Dimensions	90 x 70 x 15	mm
