Lyncee Tec 时间分辨动态轮廓仪

为3D光学形貌仪添加第四个维度！

数字全息显微镜 (DHM^®) 为静态三维形貌测量提供干涉测量级的亚纳米分辨率。与此同时，得益于独特的非扫描全息技术，DHM^®的图像抓取速率极短，最快可达1毫秒，这一 的4D测量能力为众多领域打开了广阔的应用空间。

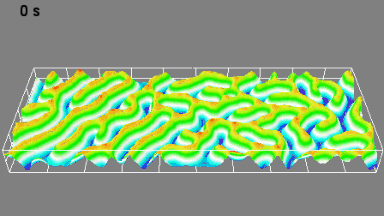

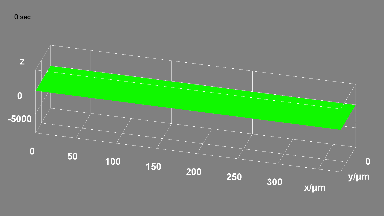

4D:  3D测量时序图

• 3D 成像抓取速度可达190帧/秒 (最高可选1000 帧/秒)

• 时间分辨率可达100微秒 (最快10 微秒可选)

• 动态垂直测量范围可达200微米









3D形貌测量提供干涉测量级的亚纳米分辨率

• 任何物镜倍率下均保证亚纳米垂直分辨率

• 多种可选物镜，包括长工作距物镜、玻璃矫正物镜、水镜、油镜等

• 多环境下测量，包括真空、气氛、液体、透过光学窗口、温度湿度可控环境等



表征样品动态响应

• 热动力学参数响应 (压强、温度等)

• 气氛、液体环境响应 (例如沉积、腐蚀等)

• 机械力或电磁力响应

• 光辐射响应











用户致谢

The researchers from the Netherlands presents a new concept to induce macroscopic morphing in polymer surfaces by an amplified response of a single molecule event. The kinetics of the surface deformation is measured by DHM

Publications:

1. New insights into photoactivated volume generation boost surface morphing in liquid crystal coatings, Danquing Liu & Dirk J.Broer, Nature Communications 6, Article number: 8334 (2015),Protruding organic surfaces triggered by in-plane electric fields, Danqing Liu, Nicholas B. Tito & Dirk J. Broer,  Nature Communications 8, Article number: 1526 (2017), doi:10.1038/s41467-017-01448-w









We are making surface structures can be switched ‘on’ and ‘off’ by external means (at the frequency ranging from several Hertz to hundred Hertz. Digital Holographic Microscope (DHM) has the unique possibility to measure real-time 3D topography in a non-contact and non-scanning manner while keeps the vertical resolution to sub-nanometers
