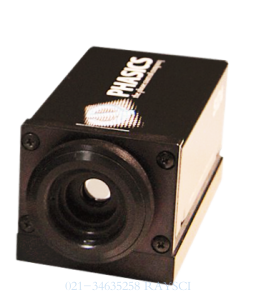

HIGH RESOLUTION PHASE & INTENSITY | at 1.55 µm
- High resolution – 160×120 phase map
- High NA lens measurement with no relay lens
- Affordable system in the NIR
- Compact for an easy integration in an optical bench
Specifications
| Wavelength range | 1.5 – 1.6 µm |
| Aperture dimension | 3.6 x 4.8 mm2 |
| Spatial resolution | 29.6 µm |
| Phase & intensity sampling | 160 x 120 (> 19 000 points) |
| Resolution (Phase) | < 11 nm RMS |
| Accuracy | 15 nm RMS |
| Acquisition rate | > 60 fps |
| Real-time processing frequency | > 10 fps (full resolution) |
| Dimensions (w x h x l) | 44 x 33 x 57.5 mm |
| Weight | ~250 g |
