ADVANCED ADD-ON | for quantitative phase microscopy

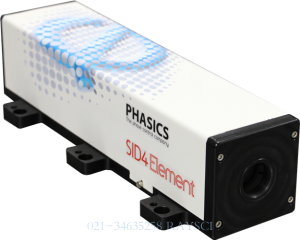

The SID4Element combines a sCMOS camera to provide the most accurate quantitative phase images.
It suits large population imaging as it offers a large field of view.
The system also enables acquiring phase and fluorescence with the same
camera for an easy merging.
- 10 μm phase pixel : best possible spatial resolution, even at low magnification
- Large field of view, adjustable with acquisition speed
- Artefact-free and instantaneous phase image
- High sensitivity fluorescence with the same camera
Specifications
| Wavelength range | 400–800 nm |
| Field of view | Up to 8.53 x 7.20 mm |
| Image size (phase pixels) | Up to 853 x 720 pixels |
| Lateral resolution (Phase image pixels cell size) | 10 µm without magnification |
| Resolution (Phase) | < 2 nm RMS
up to 0.1 nm
|
| Acquisition rate | Up to 200Hz |
| Microscope interface | C-mount |
| Camera interface | C-mount, USB 3.0 |
These specifications are given for the combination with a sCMOS Zyla 5.5 camera
